Orion LZR Automated Welding Laser System (AWL)
Orion LZR AWL: Automated Laser Welding System

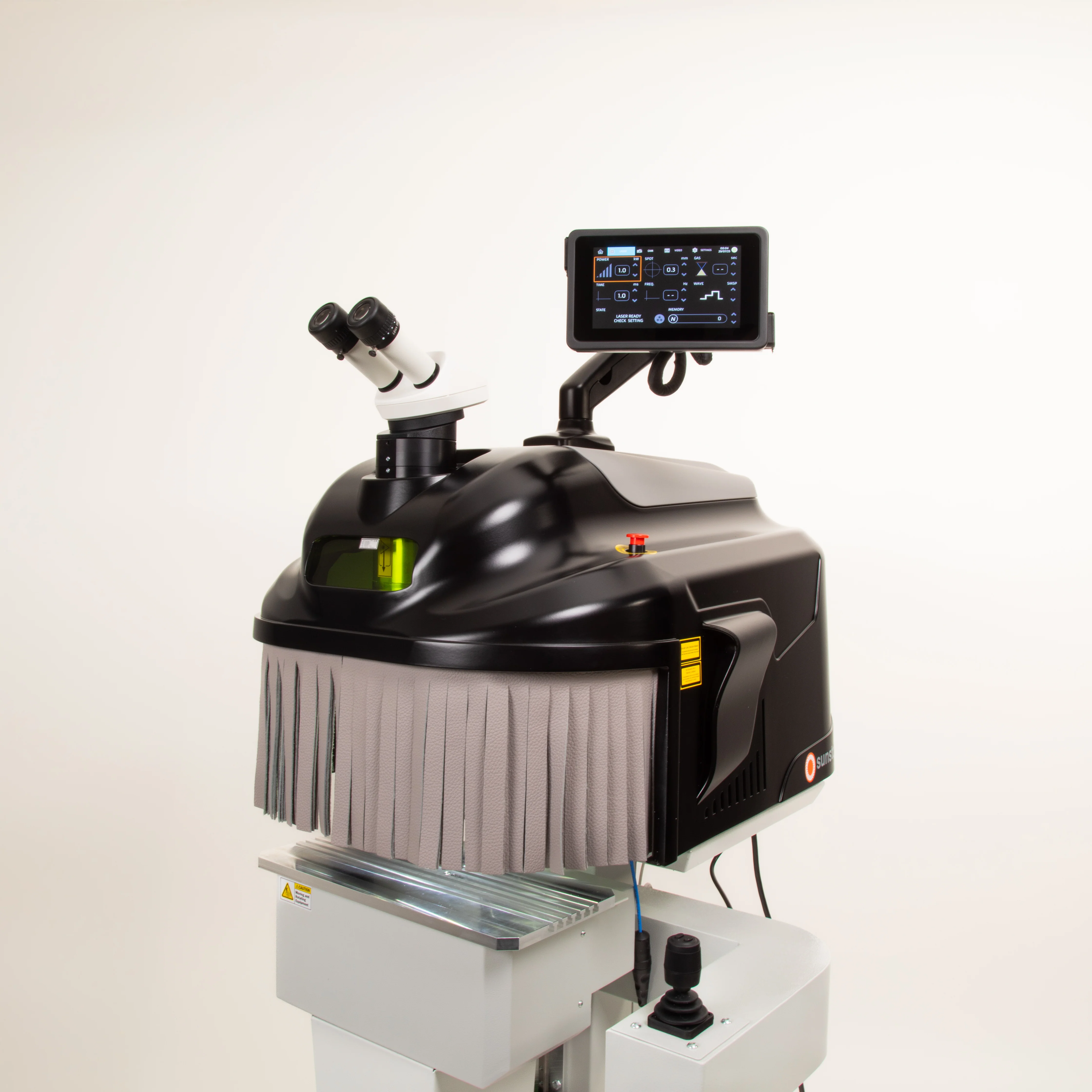

The Orion AWL is the perfect solution for tasks that require the repeatability of automation and the accuracy and precision of laser welding. The Orion AWL is equipped with an X-Y-Z motorized table, piloted by a joystick that contains all the necessary functions to perform a weld including a weld initiation button and control over axis rotation.
With an open chamber, the Orion AWL will easily accommodate bulky and odd-shaped workpieces. General manufacturers will certainly find the Orion AWL to be the perfect solution for dependable, repeatable welding, but those in the medical device, aerospace, and energy industries need the Orion AWL to meet their high standards for quality and precision.
Manufactured in Italy, youāll appreciate the design and operability of the Orion AWL and a robust welder backed by a 3-year warranty. You can count on Sunstone to provide all the support and service you may need.
Features
- Open Welding Chamber
- XYZ Motorized Tab

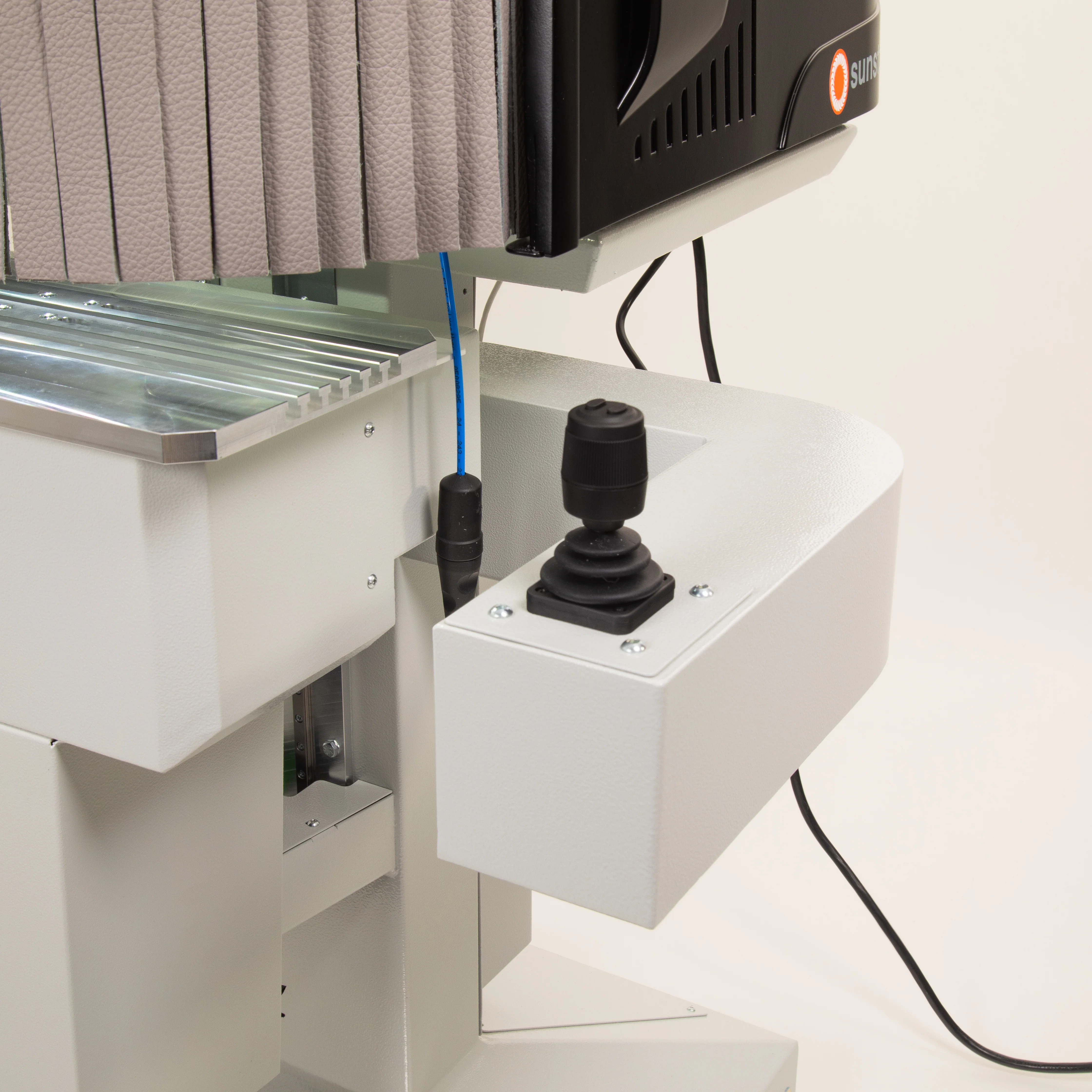

- Multifunction Joystick

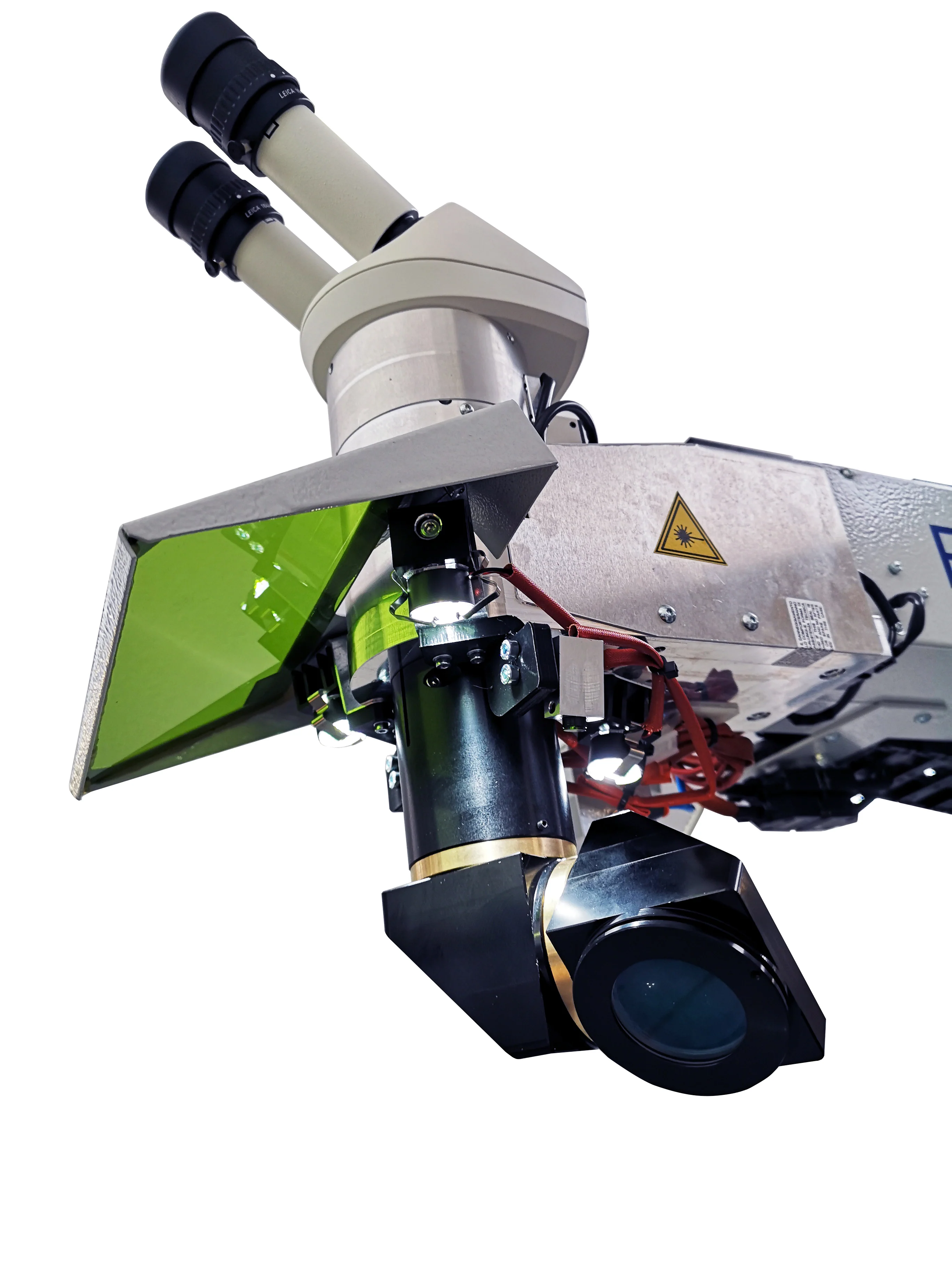

- 10x Premium Leica Optics
- 92x110x200 MM table stroke
- 7ā Touchscreen Color Display
- Integrated HD Camera

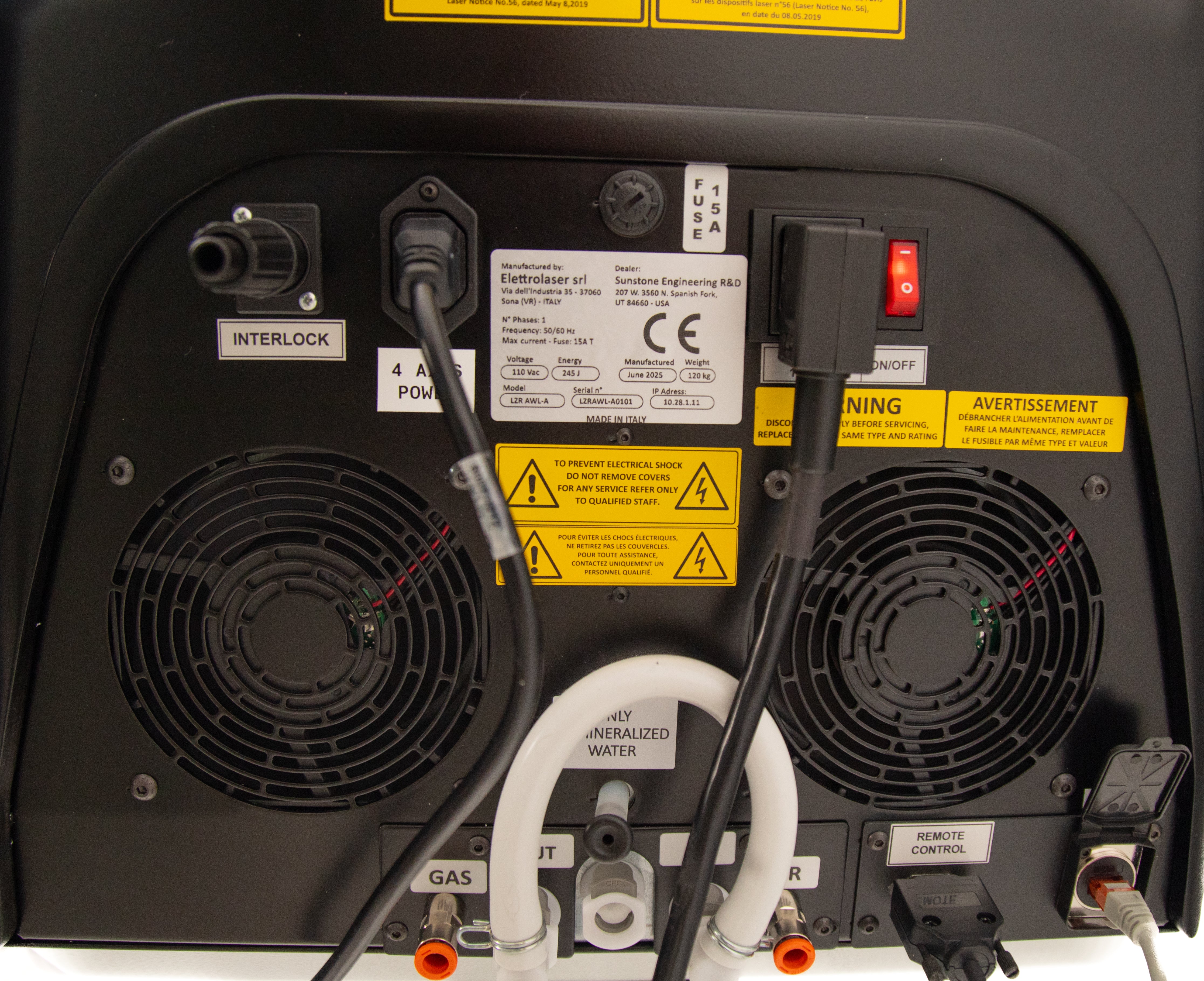

- Dual-Fan Cooling System
- WIFI Connectivity
- HDMI Output (optional)
- USB Connection (optional)
- R-axis Rotation (optional)
- G-code PC Control (optional)
Technical Specifications
| Feature: | LZR AWL 160 |
|
Laser source and wavelength |
Nd: YAG 1064 nm |
|
Average power |
100 W |
|
Peak power [kW] |
10 kW |
|
Energy [Joule] |
0.1 - 245 J |
|
Impulse time |
0.1 - 25 ms |
|
Pulse frequency |
0.5 - 30 Hz |
|
Spot diameter |
0.1 - 2.0 mm |
|
Servo Driven Height Adjustment |
Motorized, 30 positions |
|
Programs |
Pulse Shaping 6 preset |
|
Memories cell stored |
100 |
|
XYZ Table Stroke |
92 x 110 x 200 mm |
|
External control |
7" Display & Joystick with Functions |
|
Input power |
110 V AC, 50/60 Hz, single |
|
Ampere |
10A |
|
Max Dimensions |
53.2 X 34.3 X 26.4 in (135 X 87 X 67 mm) |
|
Integrated Camera |
Yes |
|

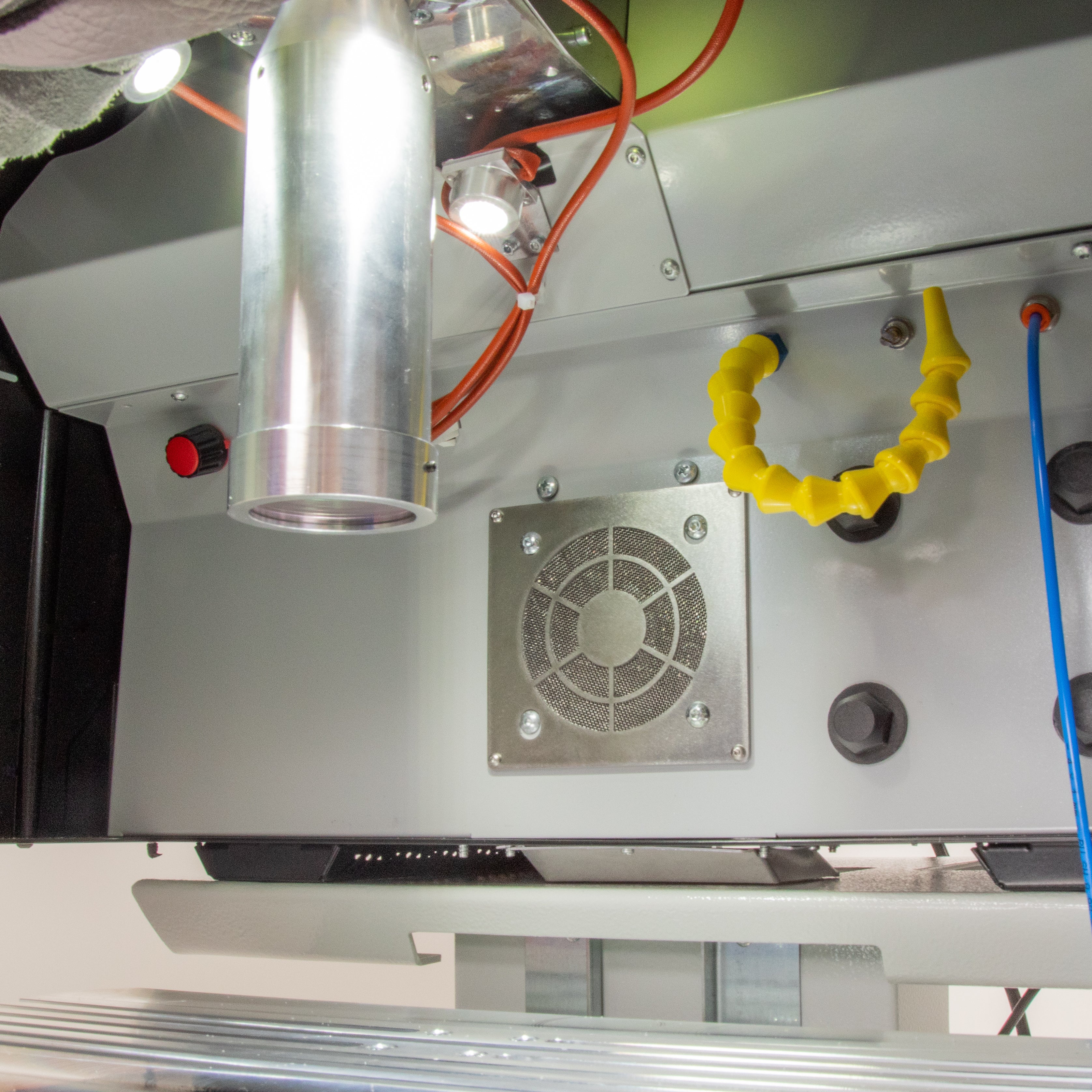

Argon / Air Nozzle |
Yes / Yes |
|
Weight |
210 lbs |
|
WIFI |
Yes |
Ā
Orion AWL Datasheet
Learn about this welders capabilities, automations, and more at the article below.
OrionāÆLZR AWL Automated Welding Laser System: Precision Meets Efficiency
DO YOU NEED TRAINING?
Sunstones training team is ready to help you master the Automated Welding Laser System (AWL) Visit our Training Page to learn more.
Ā
Ā
Looking for a lower-cost option?
Explore our pre-owned and refurbished equipment for discounted pricing, available used inventory, and model information.
Shop Pre-Owned & RefurbishedOriginal: $42,900.00
-65%$42,900.00
$15,015.00Product Information
